DB9 Male to 20-Pin 1.0mm Pitch Wire Harness:

DB9 Male to 20-Pin 1.0mm Pitch Wire Harness:
High-Reliability Custom DB9 Wire Harness for Industrial Interfaces:
This DB9 Male to 20-pin 1.0mm Pitch wire harness is engineered for precision signal
transmission in demanding environments. The UL1571-certified 28AWG wires with

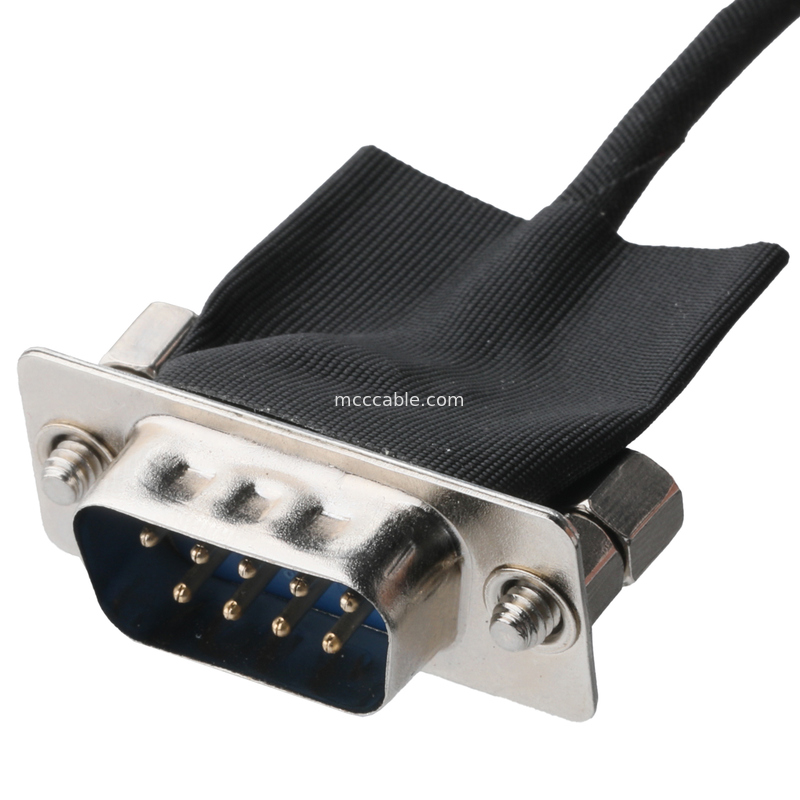

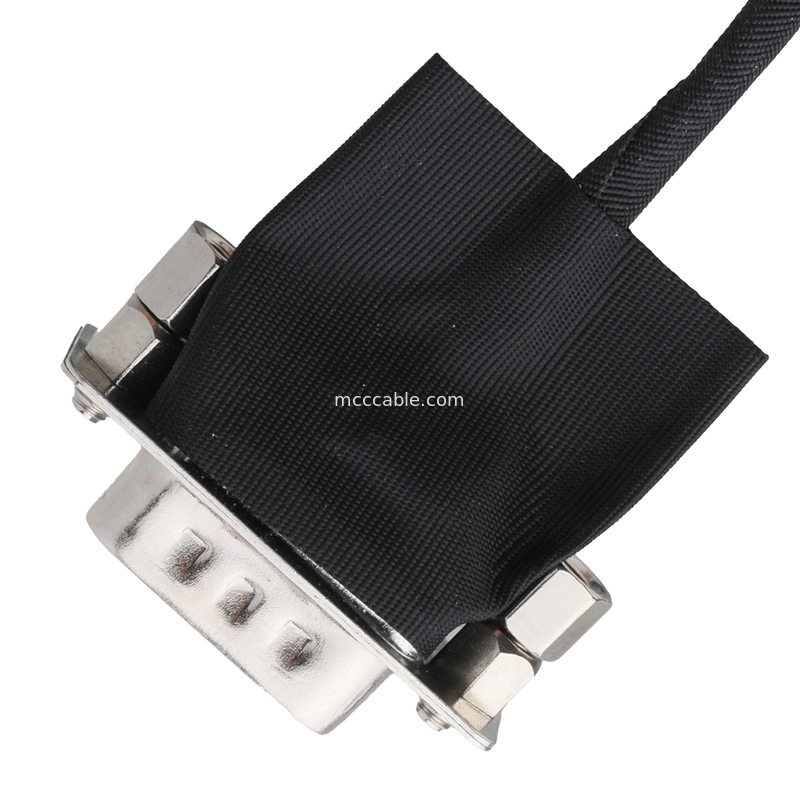

color-coded insulation ensure easy installation, while the hex screw-locked DB9
connector provides vibration-resistant mating.

Why Choose This Assembly?

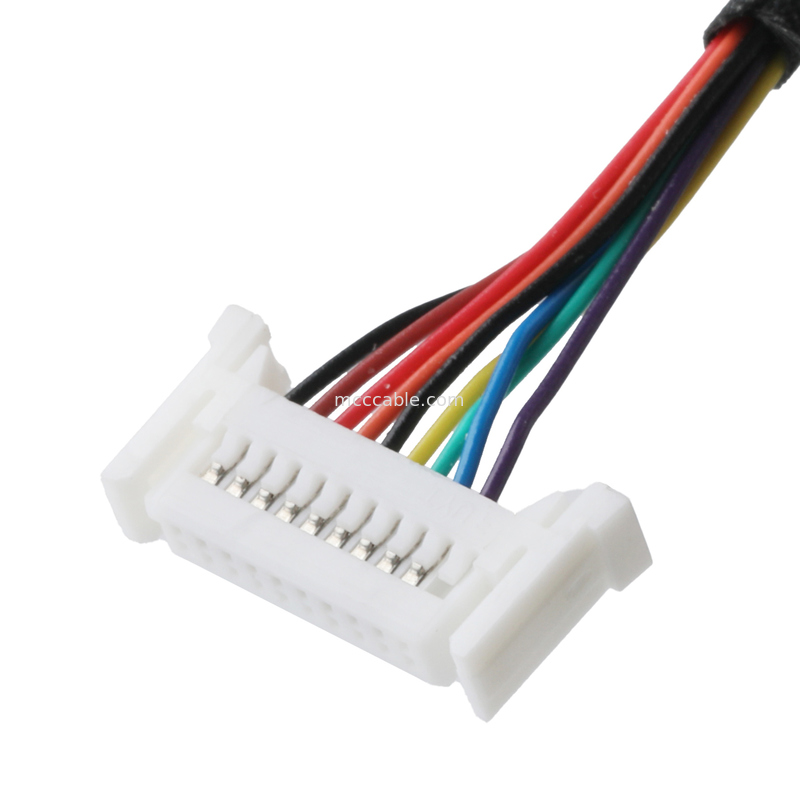

Industrial-Grade Durability: Blue rear-riveted DB9 with metal nut and white 20-pin
header for secure connections.
Customizable Wiring: Pin-to-pin configurations tailored to your schematic.
Rigorous Testing: 100% tested for continuity, insulation resistance (≥10MΩ), and
Hi-Pot safety (AC100V).
Fast Prototyping: Support for low-volume samples to mass production with full
documentation.

Ideal for:

Factory automation control panels

Medical equipment interfaces

RS-232/485 communication devices

As Your Trusted Wire Harness Partner, We Offer:

DFM Reviews to optimize your design for manufacturability

RoHS-Compliant Materials with full traceability

Labeling/Taping Options

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
